Ptex
By Neil Blevins
Created On: Apr 14th 2012
Updated On: Feb 15th 2021

This lesson will discuss the Ptex file format, what it is, it's advantages and disadvantages, and why it has been slow to be adopted more broadly by 3d software.

A Ptex file is an image file format not that unlike a tif, jpg or exr, the main difference is it isn't a purely 2d file format, but contains 2d pixel information on a face by face basis for a 3d model. The format was created at Disney for use in their proprietary paint3d software, but the format was open sourced, and some other 3d applications have taken advantage of the format. For a more technical discussion of Ptex, including the original paper and usage videos, visit Disney's Ptex Site.

2D vs Ptex Workflow

When dealing with normal 2d image formats, your 3d workflow would be something like this:

Model your 3d geometry
Create UVs, which involves flattening the faces of your 3d geometry into a 2d configuration
Paint a 2d map that corresponds to your uv positions (either in a 2d paint app like photoshop or a 3d paint app like mudbox, mari, body paint, etc).
Wrap your 2d map around your 3d model using the uvs.

One of the main issues with this scheme is it takes a long time to setup good uvs for a model, especially if it has a lot of separate pieces of geometry. And it's just so darn frustrating, it seems like there should be a way to paint on your model directly without the need for a 2d intermediate. That's where the Ptex format comes into play. Here's a common Ptex workflow...

Model your 3d geometry
Setup for Ptex (usually a button click or two)
Paint on the the geometry using a 3d paint program
The paint applies directly to the 3d faces of your geometry

Advantages & Disadvantages

So there are a number of advantages of using Ptex over the normal 2d mapping method...

No more uv setup, which means a lot of saved time
No texture stretching. Setting up good uvs can be time consuming, and even the best uvs sometimes lead to faces receiving too many pixels compared to their neighbors, causing texture stretching to occur
No artifacts at shell edges. When defining uvs, the edges between uv shells frequently leads to artifacts. Not so with Ptex.
Each face can have a different resolution, so it's quite easy to add extra detail to a specific area of your model. More difficult to set this up with UVs.

There are some disadvantages though...

Some things are just easier to paint in 2d. Say you have a rectangular cloth, it makes sense to apply a weave texture to your flattened 2d uvs as opposed to trying to paint this onto the final 3d representation of your object. Some software has ways of getting past this limitation, like flattening your 3d geometry so you can still paint in 2d onto Ptex.
No photoshop support. Photoshop is the most common tool for painting textures in the industry, but it does not allow you to paint on Ptex files. As 3d paint programs like Mudbox, Mari, etc become more feature complete, the need to use Photoshop to paint will probably decrease.
Changing the geometry of the model (like adding or deleting faces or edges) requires you to bake the Ptex file from the old geometry to your new geometry with possible quality loss. This is a solvable problem, Mudbox for example has the ability to transfer ptex from one model to another. But it is an extra step you have to worry about.
Ptex files are generally associated with their corresponding object by name, so Hand01.ptx is assigned to the 3d object in your scene called Hand01. So if you rename your model, you also need to rename its corresponding Ptex file.
Again, since ptex are associated to their object by object name, if you have 200 objects that need an identical color map, its easier to do that using uvs than to create and maintain 200 identical ptex files that are named for each object.

The Ptex Format

So a Ptex file is a list of faces, and all the pixels (also called texels, for texture pixels) on that face. For example, here's a rock texture painted onto a 3d face...

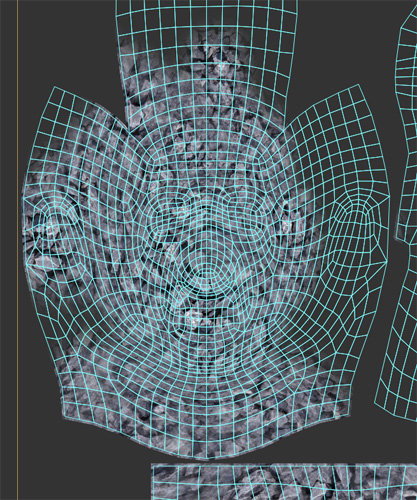

This is what that texture map may look like applied to uvs in 2d...

And this is similar to what would be contained in a Ptex file...

As a 2d map, this is unreadable. But the 3d software reads the Ptex file, and knows which chunk of texels are applied to which faces, and the result in 3d is the proper paint on the proper faces.

Painting And Baking

The two most common ways to use Ptex files in your workflow are as a way to store 3d paint, and as a way to bake various properties into your mesh.

Baking: Say you want to bake an ambient occlusion pass into your mesh, so that you can darken the cavities in your shader. Calculating the occlusion on a frame by frame basis may be slow, so instead, you calculate the occlusion, and then bake it into a Ptex file assigned to your object, now you have your occlusion without the need to setup uvs. This is great if you want to apply baked occlusion to say 20,000 objects in your scene without having to setup 20,000 uv sets. If your mesh changes, or you need to add more meshes to your occlusion, you can always go back and rebake, which is usually a quick process. You can also bake the displacement of your mesh into a Ptex file.
Painting: You use a 3d paint program like Mudbox or Mari and manually paint onto your mesh. This paint is saved as Ptex files. Since these are hand painted (not part of some procedural process), changing your geometry is a bigger deal. You'll need to either repaint, or else bake your paint from your old mesh to your new mesh, and then repaint any parts that have changed substantially.

Examples

The best way to get into Ptex is to jump in and start using them, so for those of you who own mudbox 2012-2013, here's a tutorial on the Ptex workflow for mudbox: Ptex Use In Mudbox 2013.

Here's some info for people who are interested in using ptex files in vray for 3dsmax.

Ptex and Realtime Rendering On Videocards

So now that you know a little about Ptex, why haven't we seen more of it? I mean, it was developed over a decade ago! Why hasn't it taken the world by storm? To understand why, we need to look at a little history.

History Of Pattern Placement

Original "computers" were specialized machines that had a single pre-programmed purpose. The machine was created for a specific task, and if you wanted to perform a different task, you needed a brand new machine. Then we saw the birth of punch cards and the "personal computer", where the hardware was more generalized and you could write "software" to do many different tasks with the same hardware. You could in fact program a computer to perform new tasks that weren't even thought of when the hardware was first created. That started a period of great flexibility. Then started the growth of the computer graphics industry, and the start of the desire to apply textures to 3d models...

Procedurals: the first major way of applying textures to a surface was using procedural patterns. Memory was at a premium, and so procedurals made sense since they took up little memory.
Bitmaps and UVs: As memory increased and techniques expanded, another popular texturing method appeared, a bitmap was wrapped onto your surface using an atlas, or what we later referred to as UVs. Using bitmaps allowed for a larger variety of patterns than you could easily achieve with procedurals, they were also frequently faster to render and easier to anti-alias. Nurbs Surfaces and Patches took over the film industry, whose UVs were locked to their topology. But UVs for polygons (which were very popular in the video game industry) allowed the artist to make their own atlas. Film eventually moved in the same direction when subdivision surfaces replaced nurbs and patches.
Projections: Then there was projections, the idea of taking bitmaps, but rather than tying them to an atlas, you projected the bitmap onto your surface from a projector source. This had the advantages of not requiring time consuming UV setup. And while the most common use was matte painting, it was also used frequently to texture assets.
3D Paint: Around this era we also saw the first stabs at 3d paint programs, where you could paint directly on your 3d surface. The results of your 3d paint strokes would get baked to 2d UVs, saving the paint in a 3d format of some sort never really caught on.
Ptex: As time went on, and our 3d scenes started becoming more and more complex with bigger meshes and more objects, one thing was clear: setting up good UVs on objects was a very time consuming task, and not a lot of fun. That's when Disney brought Ptex into the mix in 2010. Now each face gets its own uv space. You use either a 3d paint program or bake a procedural texture onto your surface, and write them to a Ptex file. The big advantage, no UVing necessary.

So now here we are at the present, we have procedurals, we have UVs, we have Projections and we have Ptex. But for the most part, the most commonly used technique is still UVing objects and painting the bitmaps using either 2d or 3d paint techniques. Why is this technique still the most popular? Weren't people excited when UVLess techniques started showing up? Don't UVless techniques help the artist achieve great results with less work? Why are we still using UVs then? While many causes could be pointed to, the strongest pull comes from the move towards Realtime Rendering, and the limitations that puts on available techniques.

Video Cards Favor The UV Workflow

The holy grail in the games industry is fast frame rates. The faster the frame rate, the smoother the visuals, the better the gaming experience. This is even more important now that we are entering the world of Virtual Reality and Augmented Reality with the Oculus, Holo-Lens, etc, where high frame rates aren't only desirable but are actually necessary or else people become ill.

Realtime graphics is the realm of the video card. In 2009 we started seeing all this promise from "GPU rendering", and the first few GPU renderers could perform some rendering functions at incredible speed. A good example is when mental images' iray first became available for 3dsmax, it was super fast. But the speed came with a cost, you could only use a small portion of the standard 3dsmax features. Even today, with V-Ray RT and tons of other Realtime Renderers, we have the same problem, they're compatible with more stuff than they were in 2009, but still incompatible with a large number of features. This caused a lot of frustration, since features people were used to using, now they couldn't.

While CPUs allow for a lot of flexibility, speed requires less flexible and a stronger focus on single purpose hardware. To achieve the highest speed on a video card, many base functions are a part of the hardware itself. The video card expects your 3d software to give it the data in the way the video card wants, and deviating from that means you don't get the fast frame rates.

Video card technology was for the most part driven by the needs of the videogame industry, as they were their biggest customer. Now mobile devices have a huge say with the hardware manufacturers, as well as potentially the VR and AR field. But these markets have a lot more in common with the gaming industry than with film when it comes to technique and performance requirements. Since gaming and related fields are the largest market for videocards, and UVing is the most common way of texturing stuff in videogames, video cards are created specifically to speed up that particular workflow, to the detriment of other techniques.

Ptex On Video Cards

Part of the reason techniques like Ptex (despite its advantages over UVs) has had trouble gaining ground is because the segment of the industry that's currently most interested in techniques like Ptex accelerated on video cards is too small (i.e.. the film market). The video card manufacturers aren't likely to improve the Ptex workflow on their hardware unless there's a lot of demand from their main customers (videogames, mobile). And the videogame industry overall hasn't been pushing the issue for a number of reasons...

They have built so much of their pipelines and expertise around UVs, a big change now would be difficult in terms of software, pipeline and retraining.
The old chicken and egg problem. Video cards aren't optimized to allow for the Ptex workflow, so the video game folk don't even consider it an option. Since they haven't experienced the advantages, they don't ask for it. And so the card manufacturers don't put it on the video cards, hence video cards aren't optimized to allow for the Ptex workflow.
Lackluster authoring software support.
Technical hurdles that would need to be addressed to see Ptex used in games (Quad workflows, Memory Overhead from Border Filtering, etc). These technical hurdles are often given as the main reason for Ptex's slow adoption, however, the people I've spoke to feel these issues are all solvable if the will is there.

Here's an article from 2012 by Sebastian Sylvan called Casting a Critical Eye on GPU PTex that contains a lot of useful information, both showing many of the technical issues that would need resolving to see Ptex work well on video cards, and the comments section has a good discussion with the Mudbox team (who made a Ptex implementation for hardware) where they feel Sebastian didn't give Ptex a fair shake.

FX Guide posted an interesting article called UDIM UV Mapping in May of 2014, discussing the advantages / disadvantages of UVs and Ptex. The article was very pro UVs, but then 2 months later it was followed up by another article called Ptex, the other side of texturing, which got into more detail on the advantages of Ptex, and the advances Disney hopes to see in the area.

To note, some research has indeed happened in making Ptex a viable option on hardware by the hardware manufacturers themselves, here's an article from 2013 showing that Nvidia has actually made a ptex implementation, at least in the R&D stage: Eliminating Texture Waste: Borderless Ptex. AMD as well: Radeon HD 7900 Series Graphics Real-Time Demos.

Asset Authoring "Realtime" vs Game Engine Realtime

One other note should be made to distinguish the difference between Asset Authoring "Realtime" and Game Engine Realtime. These two different areas have different requirements.

Asset Authoring realtime would be "I'm inside my 3d paint application painting a Ptex file in realtime". While this needs to update fast, it may not require 60 frames a second to give the user the results they need. In fact, it may be better to not call this "realtime" at all, but simply "interactive". Even getting results back in 1-2 seconds may give an asset creation artist the feedback they need in some circumstances.
But for the final product, the videogame engine itself (that uses the assets), achieving smooth and high frame rates is important. Real realtime is necessary.

Perhaps UVless workflows including Ptex may work fine for the asset creation stage, just not for the game engine stage. The idea would be to use UVless techniques while you're making the asset, but then bake the result to textures assigned to Automatic UVs while you're using the asset in the final product. Some sort of Automatic UVing exists in most asset authoring applications. You get UVs faster because you don't have to manually lay them out. But the disadvantage is that UV layout tends to be messier, making it difficult to paint the results in a pure 2d paint program, and issues arise with artifacts at the UV island borders, which are far more numerous and may not be placed in the ideal spot unless hand edited.

Here are some examples of using UVLess techniques at the Asset Creation stage...

Projections in Mari / Substance: The painting application Mari allows you to use projections (triplanar) and then bake the result to UVs. The same with Substance Designer / Painter, a newcomer on the scene for 3d painting in games. Since the results of the projections are baked to UVs, you can still use the results efficiently in a game engine on current videocards. But the disadvantage is because they're baked, if you want to change your projection, you have to rebake, which may require manual work and computer time. And of course if you do manual UVs to bake to, it takes awhile to UV, or if you use Auto UVs, it has the disadvantages already outlined above. So this workflow removes some of the advantages Projections offer.
Ptex in Mudbox: Autodesk Mudbox allows you to display and paint Ptex in realtime on your model while painting, but the way it does that is by create a bitmap assigned to your mesh using a sort of automatic uvset that mimics how a Ptex file works, as opposed to directly displaying a Ptex file.
Interactive Workflow, Bake At The Last Minute: You could also imagine a workflow where you work UVless for the entire asset creation stage, and get back interactive feedback (like using V-Ray RT for example inside 3dsmax or Maya), and then your last stage before sending the model to the game engine is a texture baking stage baking the textures to Automatic UVs. This could potentially save the asset artist a ton of time (since they don't have to UV and can use stuff like projections to quickly apply complex library materials to an object), and still give you realtime results in your game engine. Only disadvantage here is that if you make an asset change, you have to wait for a rebake before you get the results in your game engine. And of course the inherent Auto UV issues.

Conclusion

As you can see, this is a really complex issue, with a lot of moving parts that are controlled by a lot of different groups, from customers to software companies to hardware companies to entire industries. Trying to get all of these things to align is a really tough job and takes a lot of time. Realtime and interactive rendering has major, major advantages. And UVless workflows really help the artist spend more time on the art and less time on the technical. But right now these two things don't work as well together as we'd like. My hope is that eventually we will be able to have our cake and eat it to. But to have that, we need a push from all of the artists and technical folk in all of the graphics related industries. What we'd need to see...

All industries (film, games, etc) ask the video card manufactures to make the necessary changes to promote the Ptex workflow (or an equivalent), from the hardware to the SDKs
More research into resolving the technical hurdles that slow down Ptex, or else we'll have to keep Ptex purely as an asset creation technique
Better integration of Ptex into 3d authoring software like 3dsmax, maya, mari, etc
More focus on other UVless workflows in 3d authoring software

Realtime Rendering isn't going anywhere, and it has HUGE advantages. But it's sad that to have that advantage, we have to put up with the disadvantages of UVs. The only way around this issue is with your help. Can we have flexibility AND speed in the future? My hope is yes. But we all have to demand it together. There's no reason we can't have less focus on UV workflows AND realtime, we just need the industry to put their focus and dollars in that direction. And it all started with you demanding it. SO join me in carrying the torch, and keeping the dream alive.
